175 TPH Mobile Limestone Crushing Plant In Zambia

Client Background

The client is a leading construction and mining company in Zambia, specializing in aggregate production for infrastructure development. With a growing demand for high-quality limestone aggregates, they sought a mobile, efficient, and reliable crushing solution that could handle 175 tons per hour (TPH) with minimal downtime.

Project Overview

• Material: Limestone
• Required Capacity: 175 TPH
• Location: Zambia
• Solution: NK Series Mobile Crushing Station

To meet the client’s demands, Liming Heavy Industry recommended a customized mobile crushing plant with high productivity, ease of transportation, and low operating costs.

Challenges

1. High Production Demand – The client needed a crushing solution with stable output of 175TPH.
2. Mobility & Flexibility – Since mining sites often change, a mobile station was essential for quick relocation.
3. Dust & Noise Control – Compliance with environmental regulations required low dust and noise emissions.
4. Hard Limestone Crushing – The material’s abrasiveness demanded wear-resistant crushers for longevity.

Solution: Liming Heavy Industry’s Customized Mobile Crushing Line

After evaluating the client’s requirements, we engineered a high-efficiency, semi-mobile crushing plant consisting of:

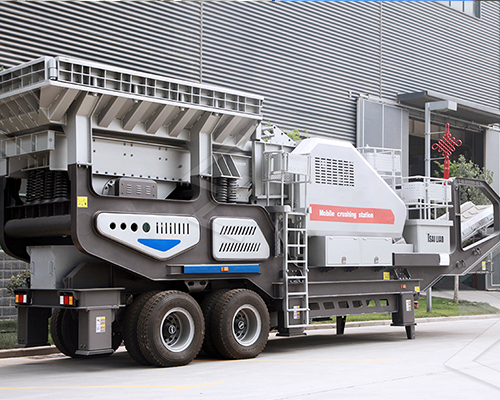

1. NK Series Mobile Jaw Crusher – Primary Crushing (NK80-2)

• Model: NK80-2 (Equipped with PE600×900 Jaw Crusher)
• Function: Primary crushing of raw limestone (≤500mm → ≤150mm).
• Advantages:
  • High crushing ratio & deep crushing cavity for hard limestone.
  • Hydraulic adjustment for easy maintenance.
  • Diesel-electric dual-power system for fuel efficiency.

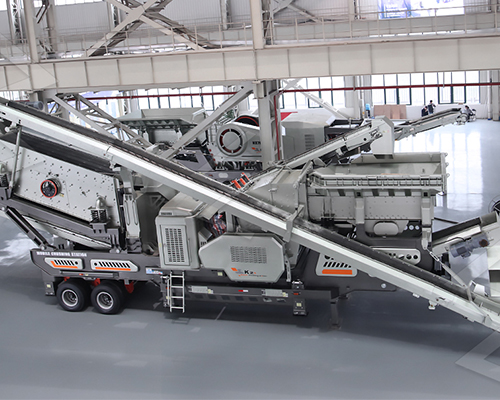

2. NK Series Mobile Impact Crusher – Secondary Crushing (NK200-2S)

• Model: NK200-2S (Equipped with PFW1315 Impact Crusher)
• Function: Secondary crushing (≤150mm → ≤30mm).
• Advantages:
  • Superior cubical-shaped aggregate output.
  • Hydraulic opening system for quick maintenance.
  • Environmentally sealed design to reduce dust.

3. S5X Vibrating Screen – Efficient Screening (S5X1860-3)

• Model: S5X1860-3
• Function: Screening and grading aggregates to meet different construction standards (0-5mm, 5-10mm, 10-20mm, 20-30mm).
• Advantages:
  • Multi-layer screening with high accuracy.
  • Rubber spring damping system for lower noise & vibration.

Technical Highlights:

• Intelligent Control System – Remote monitoring & PLC automation for optimal performance.
• Hybrid Power Mode – Reduced fuel consumption & eco-friendly operation.
• Quick Deployment – Modular design allows fast on-site assembly (<24 hours).

Project Results

• Production Capacity Achieved: 175-190 TPH, exceeding expectations.
• Finished Product Quality: Well-graded, cubical aggregates ideal for concrete and road construction.
• Mobility & Downtime Reduction: Quick site transitions reduced idle time by 40%.
• Environmental Compliance: Dust suppression system met Zambia’s mining regulations.

Client Feedback

“Liming Heavy Industry’s mobile crushing station turned out to be the perfect solution for our project. The high efficiency, easy maintenance, and flexibility of the NK series helped us boost productivity while keeping costs low. We highly recommend Liming for mining and construction projects in Africa.” – Project Manager, Zambian Client
