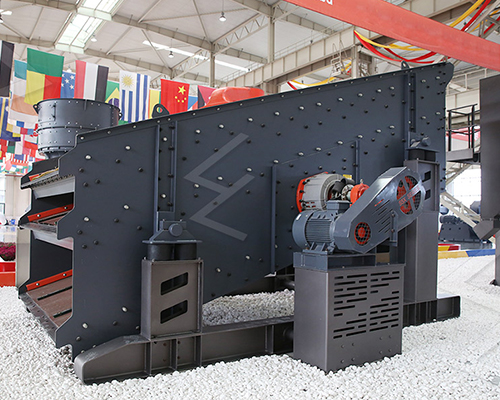

S5X Series Vibrating Screen
Product Introduction
The S5X Series Vibrating Screen is an innovative screening machine designed for heavy-duty, medium, and fine screening applications in mining, quarrying, and aggregate production. With upgraded structural design and high vibration intensity (4.2G), it delivers exceptional screening efficiency, durability, and low maintenance costs.
Working Principle
The S5X Vibrating Screen operates through a high-performance SV exciter system:
- Dual-Motor Vibration System – Generates strong centrifugal force for efficient material separation
- Elliptical Vibration Trajectory – Optimizes material movement for accurate screening
- Modular Exciter Design – Allows easy maintenance and parts replacement
- Multi-Layer Screening – Supports 2-4 deck configurations for precise grading
- Anti-Clogging Design – Rubber ball cleaning system prevents mesh blockage
Key Applications
Mining & Quarrying
Iron/copper/gold ore screening
Coal classification
Aggregates size separation (0-300mm)
Construction & Recycling
Sand/gravel sorting for concrete production
Construction waste recycling
Railway ballast screening
Industrial Uses
Chemical powder grading
Abrasives manufacturing
Fertilizer processing
Technical Advantages
Enhanced Structural Design
- Heavy-duty frame construction with optimized beam structure
- Increased strength-to-weight ratio for 30% longer service life
- Shock-absorbing spring system reduces foundation impact
Superior Screening Performance
- High vibration intensity (4.2G) for better material handling
- Accurate size separation (2-70mm screening range)
- Larger screening area (up to 25m²) for higher throughput
Maintenance & Cost Benefits
- Wear-resistant screen decks with polyurethane/rubber options
- Quick-release screen panels – replacement in 10 minutes
- Dust-proof bearing housing extends bearing life 2X
Smart Operation Features
- Overload protection system
- Remote monitoring capability
- Variable frequency control (Optional)
Why Choose Liming’s S5X Vibrating Screen?
15+ Years of vibrating screen manufacturing experience
ISO 9001 Certified quality control system
Global service network covering 60+ countries
Custom solutions available for special materials
